Caribbean ShadeLaser Cutting
Laser-cut and welded steel brackets on the workshop bench

Metal laser cutting · Christ Church, Barbados

Laser cutting, quoted in seconds.

Upload a DXF. Pick mild steel, stainless or aluminium. See the price, give the go-ahead, and collect your parts from our workshop in Gibbons. No emails back and forth.

Upload a file 6 kW fibre laser · 1500 × 3000 mm bed · up to 19 mm

Instant quote

Prices in Barbados dollars, ex VAT

1 · Your file

Drop a DXF here or click to choose · 1:1 scale, millimetres · max 25 MB
Your file stays private. We only use it to make your parts.
Preview appears here

    2 · Material and quantity

    3 · Price

    —
    Upload a file to see a price

      You will get the quote by email with payment details. Nothing is cut until you give the go-ahead. Orders over BBD 2,000 need a 50% deposit.

      How it works

      From drawing to collection, without the back-and-forth.

      1

      Upload

      Drop a DXF. We read the cut paths, check the file and show you the size.

      2

      Quote

      Choose material, thickness and quantity. The price updates as you change them.

      3

      Go-ahead

      Accept by email and pay by transfer or card. Trade accounts can order on a PO.

      4

      Cut

      Your job is nested and scheduled on our 6 kW fibre laser. You get a date, and we keep it.

      5

      Collect

      We message you when parts are packed and ready at Gibbons Industrial Park.

      Capabilities

      One machine, three metals, most thicknesses in stock.

      6kWFibre laser
      1500 × 3000Bed, mm
      19mmMax thickness
      0.2mmKerf

      Mild steel

      Q235 / A36. Clean oxygen-cut edge, paint-ready. Galvanising and blast-and-paint available.

      • 1.5
      • 2
      • 3
      • 4
      • 5
      • 6
      • 8
      • 10
      • 12
      • 16
      • 20 mm

      Stainless steel

      304 and marine-grade 316. Nitrogen-cut, bright oxide-free edge.

      • 1
      • 1.5
      • 2
      • 3
      • 5
      • 6
      • 8
      • 10
      • 12 mm

      Aluminium

      5052 marine sheet. Nitrogen-cut. Signs, escutcheons, brackets, screens.

      • 1.5
      • 2
      • 3
      • 5
      • 6
      • 8
      • 10
      • 12 mm

      Highlighted thicknesses are normally in stock. Others are ordered in; the quote tells you. Brass and copper on request. Bending, countersinking, blasting, painting and galvanising can be added to any quote.

      Real prices

      What recent jobs cost.

      Steel plates

      14 rectangular plates, 102 × 191 mm, 3 mm mild steel, material included.

      BBD 21 each

      Stainless escutcheons

      28 square escutcheons, 102 mm, 5 mm 316 stainless, material included.

      BBD 20.70 each

      Heavy plates

      15 plates, 8" × 29½", 6 mm mild steel, material included.

      BBD 80 each

      Aluminium discs

      80 discs from 3 mm aluminium, customer-supplied material.

      BBD 8.40 each

      From invoices issued in 2025, ex VAT. Your price depends on cut length, pierces, material and quantity, and the tool above shows every line of it.

      Work

      Cut here, used all over the island.

      Laser-cut and welded mild steel brackets
      Welded bracketsMild steel

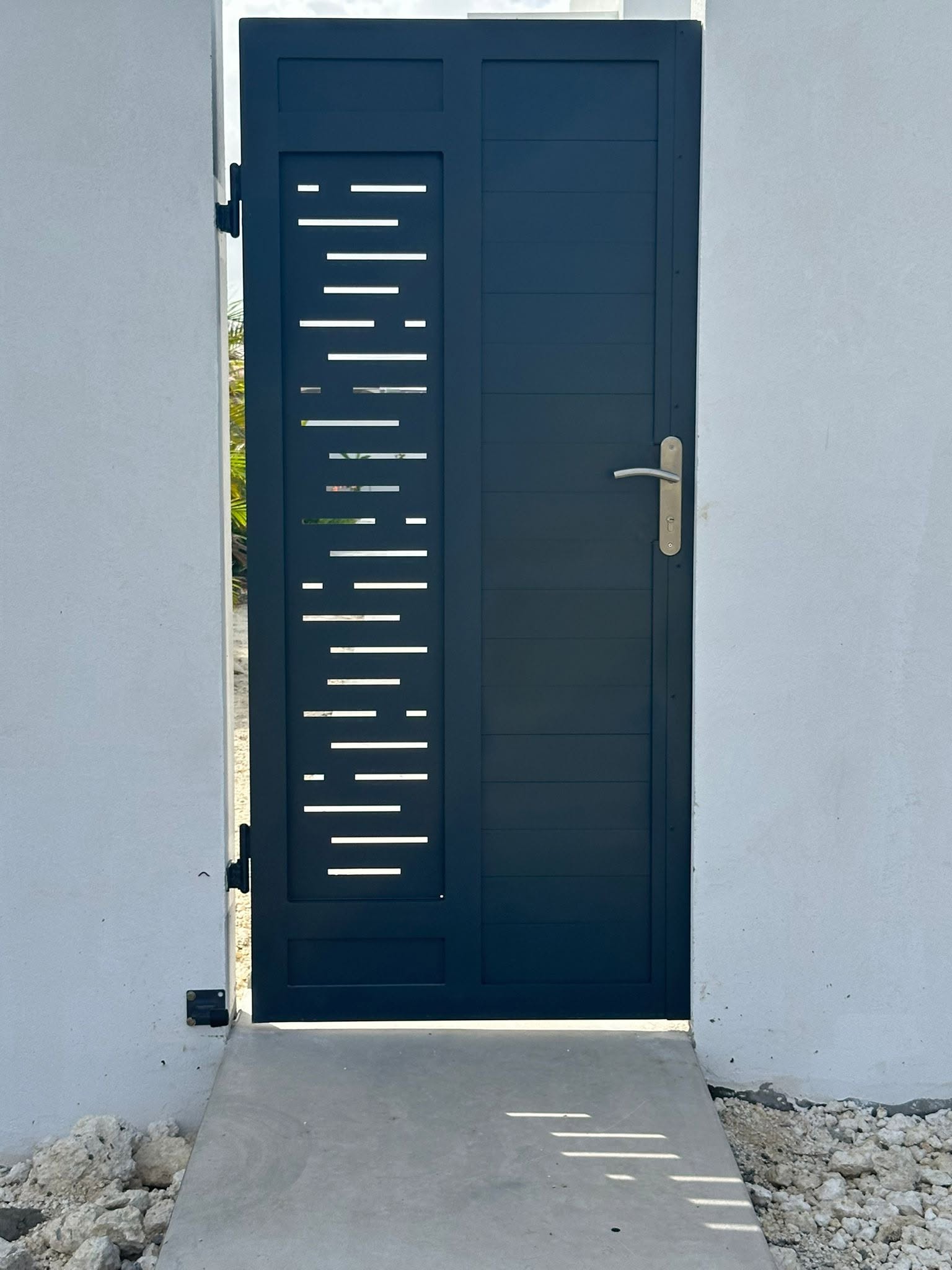

      Laser-cut aluminium gate with slotted pattern
      Patterned gateAluminium

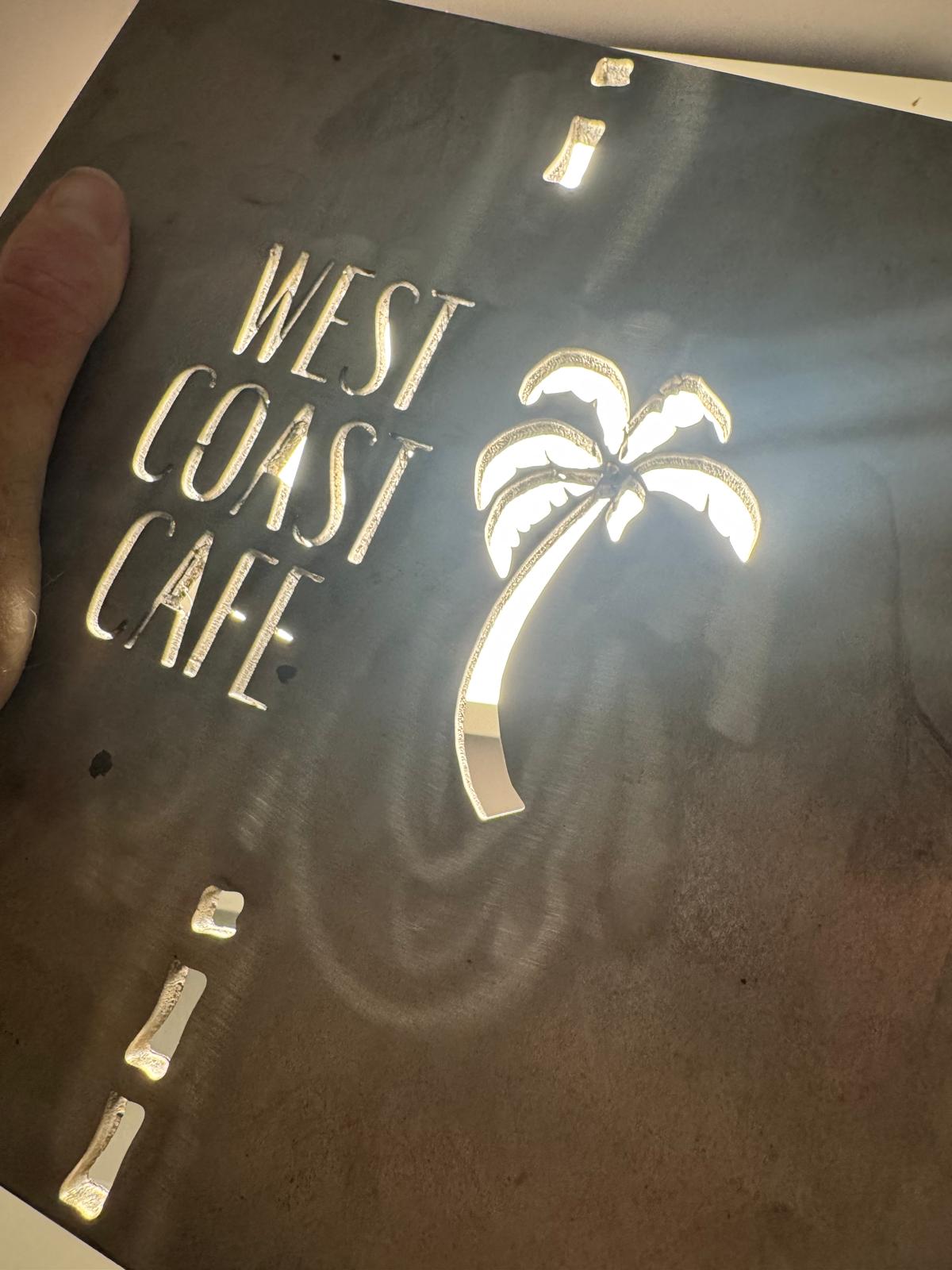

      Backlit laser-cut steel sign
      Backlit signSteel

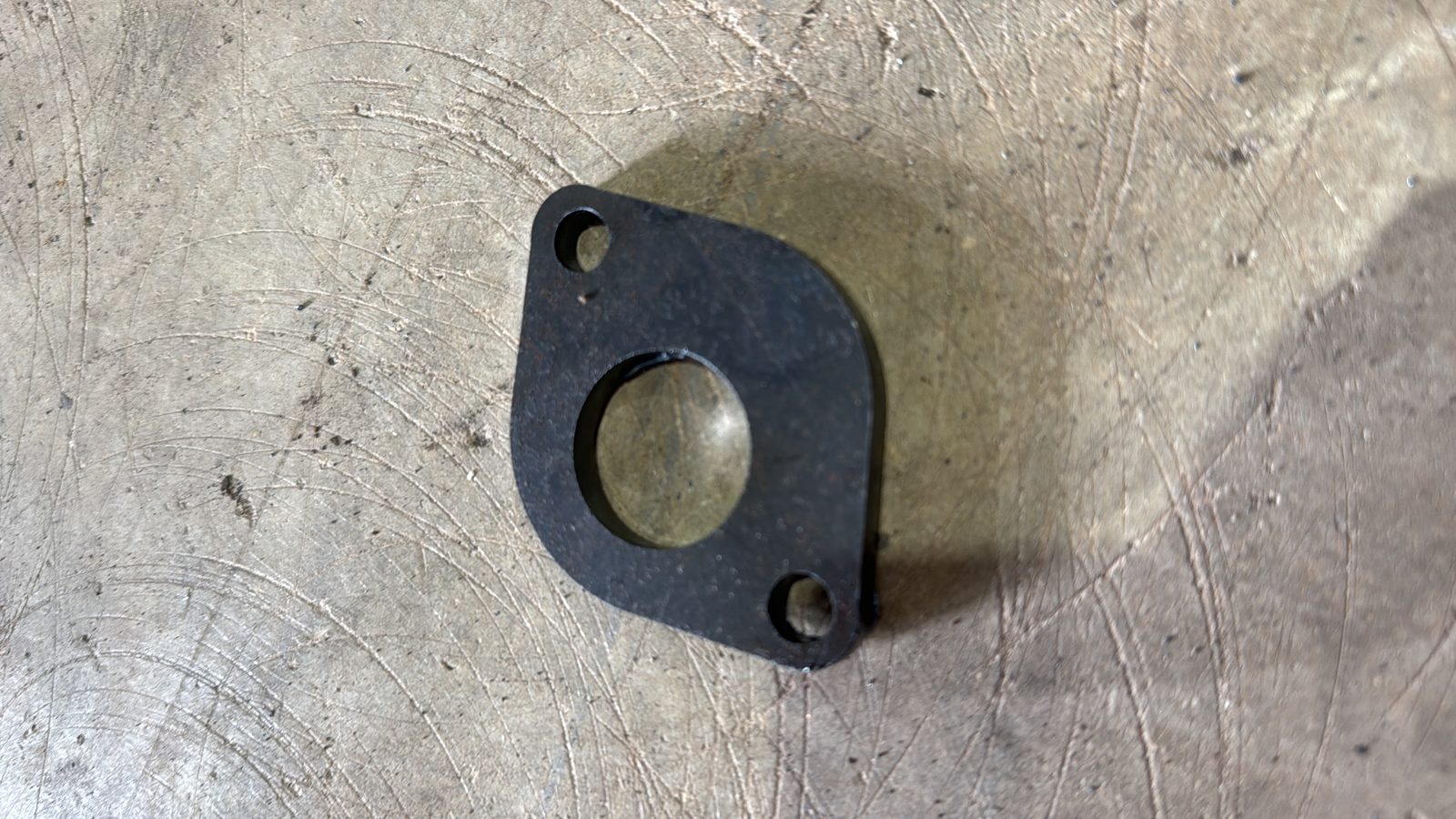

      Laser-cut steel flange
      Machine flangeMild steel

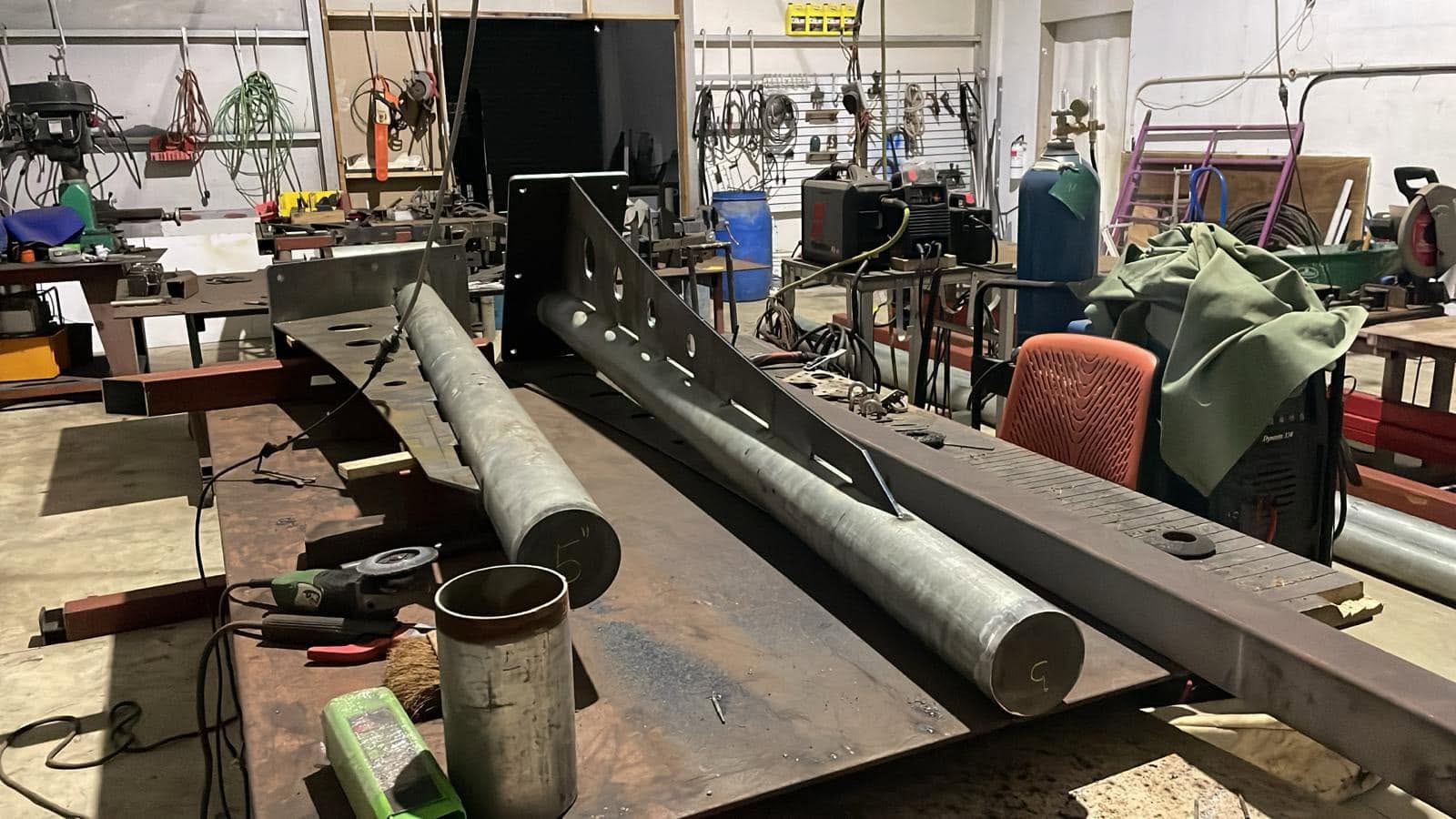

      Steel fabrication in the Caribbean Shade workshop
      Fabrication, same roofGibbons, Christ Church
      Cut forColes EngineeringIcon ConstructionSaltechSign Up IncMetal Craft WorksMachine Shop ServicesNPURE Water FiltrationFusion Metal DesignPendry Barbados

      File guide

      Files that cut first time.

      • DXF, drawn 1:1 in millimetresInches are fine if the file says so. We show you the size we read, so check it.
      • Closed outlines onlyEvery part is a closed loop. Gaps and overlaps become open cuts or double cuts.
      • Convert text to outlinesText objects are ignored. Explode them to curves in your CAD.
      • Holes at least the material thicknessSmaller holes are possible but burr. Slots and webs: at least 1× thickness.
      • Allow for the kerf0.2 mm. Draw the finished size; we cut on the correct side of the line.
      • One file, many partsPut all parts for one material and thickness in one file. Set quantity per file.

      Questions

      I only have a sketch or a PDF.

      Send it with the request form, or email it. We draw it up at a small fee and send you the DXF to approve, then the quote.

      Can I bring my own material?

      Yes. Tick the box in the quote tool. We inspect it for flatness and grade when it arrives. Painted, galvanised or badly rusted sheet may not cut cleanly.

      How long does it take?

      Standard is 5 business days from go-ahead. Rush is 2, if the machine has capacity. We tell you the date when you order, not after.

      Do you do finishing?

      Bending, countersinking, abrasive blasting, epoxy and automotive paint, and galvanising. Add them in the quote tool or ask.

      How do I pay?

      Bank transfer to Royal Bank of Canada, or card. Jobs over BBD 2,000 start with a 50% deposit. Trade customers can set up an account and order on a PO.

      Is my design kept private?

      Yes. Files are stored only to make your parts and are never shared or reused.
